Settings and Macros/ColorFill Description

The macro fills the image with a custom flat color using the Alpha channel as a mask by default.

Node Inputs

Input

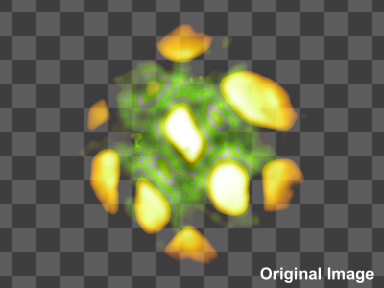

Source image

EffectMask

Defines the areas where the effect is applied

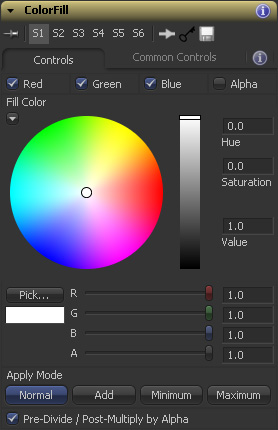

Controls Tab

Red, Green, Blue, Alpha

Checkbox controls. Define which channels to affect.

Fill Color

Color controls. Solid color to fill the image.

Apply Mode

Multi-button control. Selects the way the color is applied over the original. Note, that the Minimum and Maximum modes are calculated for R, G, B channels individually and don't depend on the Luminance.

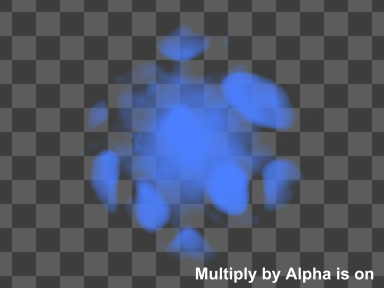

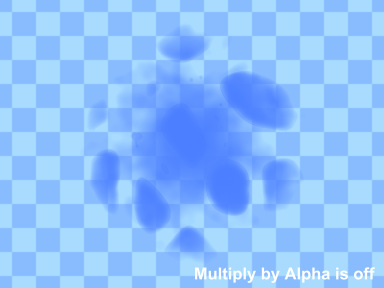

Pre-Divide / Post-Multiply by Alpha

Checkbox control. Only opaque pixels are affected if it's on.

Download ColorFill_v03-0

Development History and Discussion on PigsFly

To install the macro, place the downloaded ColorFill_v03-0.setting file to your Fusion:\Macros folder.
Then you can insert it to the Flow either choosing from the main menu: Tools>Macro or by pressing Ctrl+Space and typing the tool name.

Gregory Chalenko
