Eyeon:Manual/Fusion 6/Layout Preferences

Layout Preferences

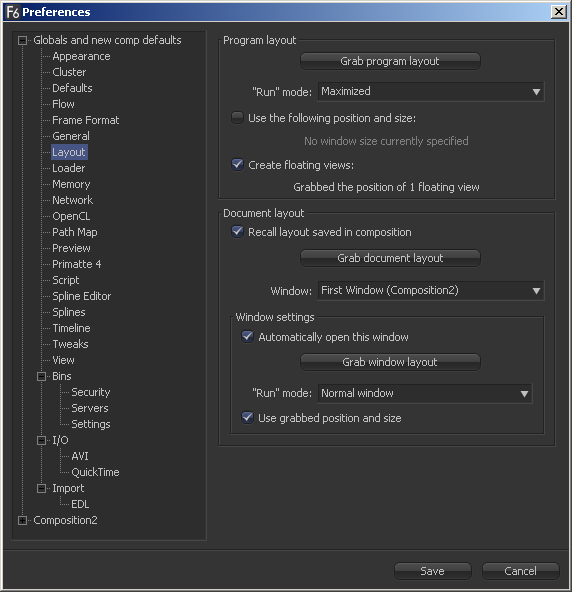

These controls are used to control the Layout, Size and Position of various elements of Fusion's interface at startup or when a comp is created.

There are a lot of options but, in practice, simply organize the interface the way it is preferred on startup and when a new composition is created, then open this preferences panel and click on the three buttons.

Program Layout

Grab Program Layout

Pressing this button causes Fusion to store the program's overall current position and size.

Run Mode

This menu is used to select the program's default mode at startup.

Use The Following Position And Size

When checked, the values stored when Grab Program Layout was selected will be used when starting Fusion.

Create Floating Views

When checked, the values of the floating display views will be recorded when the Grab Program Layout button is used.

Document Layout

Recall Layout Saved In Composition

When checked, all layout settings in the controls below will be recalled when a saved composition is loaded.

Grab Document Layout

Pressing this button causes Fusion to store the entire interface setup, including all of the internal positions and sizes of working areas.

Window

When multiple Windows on the same composition are used, this menu is used to select the Window to which the Window Settings will apply.

Window Settings

Automatically Open This Window

When checked, the selected Window will automatically be opened for new flows.

Grab Window Layout

Pressing this button causes Fusion to store the size and position of the selected Window.

Run Mode

Select the default run mode for the selected Window.

Use Grabbed Position And Size

When checked, the selected Window will be created using the stored position and size.
