Settings and Macros/JoshPinesLogLin Description
From VFXPedia
[ Main Manual Page ]
| JoshPinesLogLin_v01 | Download |

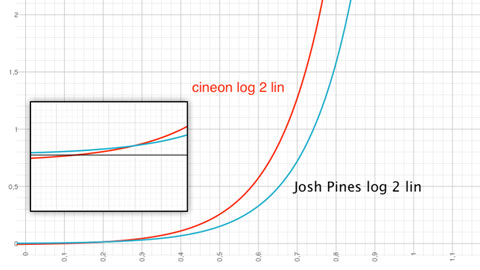

This macro is an implementation of a slightly different log2lin conversion developed by Josh Pines. It prevents negative values from appearing in the result. Note: Fusion 6.4 has added native support for this formula to its CineonLog tool.
The formula used can be found on the OpenEXR list. The logarithmic value 445 will be mapped to the value of 0.18 in linear space. Apart from that, the buttons are similar to the regular Cineon Log tool. There are no published inputs to change the formula's variables, but you can dig into the macro to change the custom tools inside.
Development History and Discussion on PigsFly
Main Inputs
The following inputs appear on the tool's tile in the Flow Editor:
- Input
- Source image to be converted. Required.

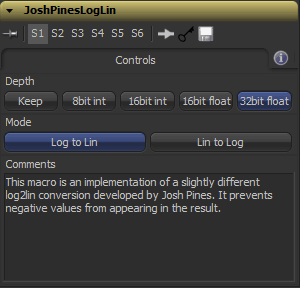

Controls Tab
Multibutton control. When converting to linear, the output should be floating point. Logarithmic file formats (.dpx and .cin) are 10 bit, so the resulting color space should at least be 16bit integer.
Multibutton control. Log to Lin or Lin to Log.
--Tilt
