Configuring Paths on Windows

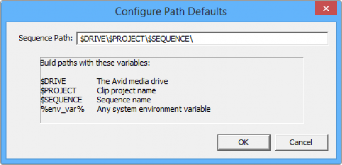

When using Fusion Connect on Windows, the Configure Path Defaults dialog looks like this:
Environment variable path maps on Windows.
Fusion Connect can define the user variables directly in the Fusion Connect plug-in. Click the Configure Path Defaults button to launch the path defaults dialog editor. In the Options section of the Fusion Connect AVX2 plug-in, click the triangle to reveal the path details.
Fields and Variables
Variables are the control title defined specifically by the application that is being controlled, while values are the instructions that tell a variable what to do. The fields and variables that can be used on macOS and Windows are described in the following table:
Field | Variable | Environment Variable | Description |
Project Name | $PROJECT | CONNECT_PROJECT | Overrides the current Avid Project name. |
$DRIVE | CONNECT_DRIVE | Drive or folder for all Connect projects | |
$SEQUENCE | – | Name of Avid sequence | |
Sequence Path | $SEQPATH | CONNECT_SEQUENCE_PATH | Folder for all Connect files in this sequence |
$GROUP | – | Unique name of this Connect instance | |
$CLIP | – | Name of exported clip | |
Clip Path | – | CONNECT_CLIP_PATH | Folder for exported clips from Avid |
Out Path | – | CONNECT_OUT_PATH | Folder for rendered results from Fusion |
Comp Path | – | CONNECT_COMP_PATH | Location and name of Fusion comp file |
