‌PLACE ON TOP‌

Lets you edit the incoming clip as a superimposition above whatever other clips are in the Timeline; the incoming clip is always placed on top, so if there are clips in Tracks 1, 2, and 3, the incoming clip is automatically placed on Track 4, regardless of which track is selected. The frame the incoming clip aligns with depends on the following:

— The incoming clip aligns to the playhead if no timeline In or Out points have been defined.

— The incoming clip aligns with a timeline In point if one has been set.

— The incoming clip’s Out point will align with a timeline Out point if one has been set without an In point. This “backtimes” the clip.

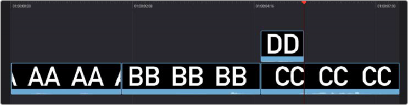

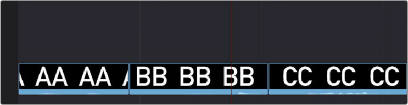

(Top) Before placing a clip on top, (Bottom) After editing clip DD into the Timeline with a Place on Top edit

SRC O/WR (Source Overwrite)

This edit requires overlapping timecode in multiple clips to work properly, such as when recording synced timecode to multiple cameras during a multi-cam shoot. If there is no overlapping timecode, this edit does nothing.

Press this key to automatically place a source clip with a marked In/Out region on top of a clip in the Timeline so that its timecode syncs with the timecode of the timeline clip, when you don’t know

exactly how much of the incoming source clip you want to edit into the Timeline, and you just want it synced appropriately.

Search Dial Live Trimming Tools

Several of the most powerful features of the DaVinci Resolve Editor Keyboard involve the intuitive trimming controls afforded by the Search dial.

TRIM IN

When this key is pressed and held, it lets the user trim the In point of the clip in the Timeline under the playhead by simply rotating the Search dial back and forth. The trim point is highlighted in green. Release the key to confirm the edit.

In the Edit page, the target clip for the trim is prioritized by selection first, then by track order under the playhead.

In Source mode, holding this key and rotating the search dial adjusts the In Point of the clip in the Viewer.

TRIM TRIM

IN OUT ROLL

SLIP SLIP TRANS

SRC SEXT DUR

TRIM TRIM

IN OUT ROLL

SLIP SLIP TRANS

SRC SEXT DUR

TRIM TRIM

IN OUT ROLL

SLIP SLIP TRANS

SRC SEXT DUR

DAVINCI RESOLVE EDITOR KEYBOARD

F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12

DAVINCI RESOLVE EDITOR KEYBOARD

F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12

DAVINCI RESOLVE EDITOR KEYBOARD

F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12

SMART INSRT

APPND

RIPL O/WR

ESC

SYNC INSRT

PIC IN VIDEO AUDIO

FIT TO RIPL

FREEZ TRANS SWAP

INSERT O/WR REPL

BIN BLACK

PIC ONLY ONLY

FILL DEL

TIME CODE

CAM

DATE TIME

CLIP NAME

SOURCE

TIMELINE

CLOSE UP

PLACE ON TOP

SRC O/WR

1 2

(

)

–

UNDO

DELETE

HOME

F/TC

SHTL JOG SCRL

TRIM

DITOR

DUR ENTER

TAB

W E

OUT

SRC/ TL

DYNAM

EXTND RETIME

T Y

TRIM S/CLP AFTER

T Y

TRIM S/CLP AFTER

T Y

TRIM S/CLP AFTER

EDT PT TYPE

O P [ { ] } \ |

OUT FULL PREV NEXT

O P [ { ] } \ |

OUT FULL PREV NEXT

O P [ { ] } \ |

OUT FULL PREV NEXT

TRIM EDIT

VIEW KEY KEY

–

CAPS LOCK

TRIM IN

TRIM OUT

ROLL

NORML

S D F

SLIP ENABL MATCH

FLAG

HAND

K L

; : ‘ “ RETURN

REV

STOP FWD FIRST

SLIDE FRAME

FRAME

LAST FRAME

SHIFT

SLIP SRC

SLIP TRANS

SEXT DUR

SLIP TRANS

SEXT DUR

SLIP TRANS

SEXT DUR

Z X C V B

ZOOM MARK AUTO NRST BLADE CLIP COLOR EDIT

Z X C V B

ZOOM MARK AUTO NRST BLADE CLIP COLOR EDIT

Z X C V B

ZOOM MARK AUTO NRST BLADE CLIP COLOR EDIT

SNAP

, < . >

MARKR NUDGE NUDGE

/ ?

PLAY ARND

/ ?

PLAY ARND

/ ?

PLAY ARND

SHIFT

ENTER

LEFT RIGHT

CRTL

OPT ALT

COMMAND

CMD

CUT

DIS

SMTH CUT

STOP PLAY

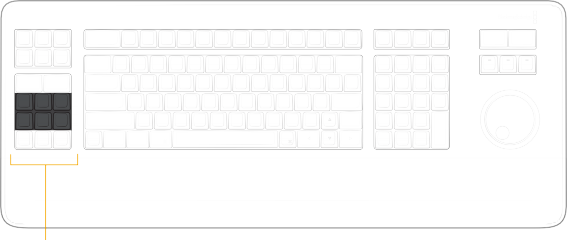

The Trimming tools

TRIM OUT

When this key is pressed and held, it lets the user trim the Out point of the clip in the Timeline under the playhead, by simply rotating the Search dial back and forth. The trim point is highlighted in green. Release the key to confirm the edit.

In the Edit page, the target clip for the trim is prioritized by selection first, then by track order under the playhead.

In Source mode, holding this key and rotating the search dial adjusts the Out Point of the clip in the Viewer.

ROLL

When this key is pressed and held, it lets the user trim the nearest edit point to the clip under the playhead, and roll the edit point back and forth between the clips by simply rotating the Search dial. The trim point is highlighted in green. Release the key to confirm the edit.

SLIP SRC (Slip Source)

When this key is pressed and held, it allows the user to slip the footage of the clip to the left of the nearest edit point to the playhead back and forth by moving the Search dial. A four way multiview will show the In and Out points for both source and destination clips as you slip. The clip that will slip will be highlighted in orange. Release the key to confirm the edit.

SLIP DEST (Slip Destination)

When this key is pressed and held, it allows the user to slip the footage of the clip to the right of the nearest edit point to the playhead back and forth by moving the Search dial. A four way multiview will show the In and Out points for both source and destination clips as you slip. The clip that will slip will be highlighted in orange. Release the key to confirm the edit. This operation will work on audio only edits in the Edit page, but no video multivew will be shown.

TRANS DUR (Transition Duration)

Holding down this key when a transition is under the Smart Indicator or playhead will allow you to change the duration of the transition using the search dial. Turning the dial left will shorten the transition and right will lengthen it. Once the duration is correct, release the key.
