The Shape Box transform mode is similar to Time Stretching; however, it can adjust the vertical scaling of keyframe values as well as time.
— Select a group of keyframes, and then choose Modes > Shape Box from the contextual menu.
— Select a group of keyframes, and then click the Shape Box button in the toolbar.
— Select a group of keyframes, and then press Shift-B to enable or disable the Shape Box mode.
The Shape Box button in the toolbar
A white rectangle outlines the selected points when the mode is enabled. To scale, skew, or stretch the spline, drag on any of the control points located around the box. To move all the keyframes, drag on the box edges.
TIP: If no points are selected, or if you want to select a new group of keyframes, you can drag out a new rectangle at any time.
TIP: If no points are selected, or if you want to select a new group of keyframes, you can drag out a new rectangle at any time.
TIP: If no points are selected, or if you want to select a new group of keyframes, you can drag out a new rectangle at any time.

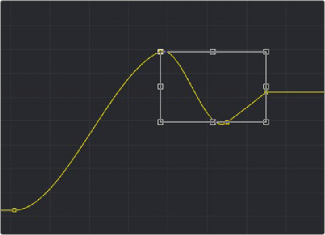

The Shape Box in the graph
