To preserve some of the curvature of the original camera motion, you can increase the value of the Reference Intermediate Points slider that appears when the Start & End reference mode is selected.
When tracking to create smooth camera motion, ensure that the Start & End reference mode is enabled and set the Merge mode to BG Only. It is recommended to leave the Pivot Type control set to Tracker Average.
Using the Tracker Node for Match Moving
A simple match moving example is shown at the beginning of this chapter, but this section presents additional details that you may not have been aware of. Examples of match moving include:
— A static CG element must be believably added to a moving sequence.
— Two sequences with different motions must be composited together.
Some clips may need to be stabilized so that an element from another source can be added to the shot. After the element or effect has been composited, the stabilization should be removed to make the shot look natural again.
Simple Match Moving
Match moving essentially applies the movement from the tracked clip to another clip. There are two ways to perform match moving. One method involves connecting other nodes, such as Transform or Merge, to a Tracker’s outputs. The other method is to stabilize an image by trying to remove all motion, but instead of setting the Merge menu to BG Only, set it to FG Over BG, FG Only, or in rare occasions, BG Over FG.
Set the Merge menu to BG Only, FG Over BG, or BG Over FG
When using this Merge menu, you connect a foreground image to the Tracker node’s input connection in the Node Editor.

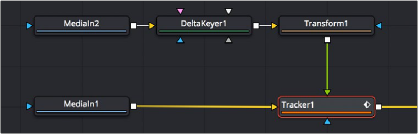

Connect a foreground image to the Tracker’s foreground input
