The Stereo Mix node
Stereo Mix Node Overview
This node is used to swap the left and right material inputs. It is often used to output to the left and right eye of the 3D Render.
Inputs
This node has two inputs that are both required for this node to work. Both inputs accept either a 2D image or a 3D material.
— LeftMaterial: The orange left material input accepts a 2D image or a 3D material to be used as the material for the left eye rendering. If a 2D image is used, it is converted to a diffuse texture map using the basic material type.
— RightMaterial: The green right material input accepts a 2D image or a 3D material to be used as the material for the right eye rendering. If a 2D image is used, it is converted to a diffuse texture map using the basic material type.
While the inputs can be either 2D images or 3D materials, the output is always a material.
Basic Node Setup

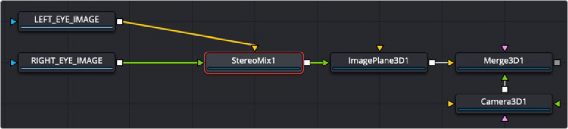

The Stereo Mix node can be used with either stereo images or materials. The example below shows two images combined in the Stereo Mix node causing the output to be a stereo anaglyph material.
A Stereo Mix node used to combine left and right images into a single stereo material
