— Input 2 Contribution: Controls the strength of input 2’s source, based on the color channels of the selected color space (RGB, YUV, XYZ, etc.). These can be adjusted separately if the Gang checkbox is unchecked.
— Offset: Controls the offset of the combination, based on the color channels of the selected color space (RGB, YUV, XYZ, etc.). These can be adjusted separately if the Gang checkbox is unchecked.
— Gang: Check this box to gang the channels of the custom mixer together, or uncheck to adjust separately.
Advanced Options
Sets the composite type, as well as the color space and gamma of the resulting mix.
— Composite Type: Sets the composite type used for the mixer from the drop-down menu.
— Color Space: Sets the Color Space used for the blend. The default is the current Timeline color space.
— Gamma: Sets the Gamma used for the blend. The default is the current Timeline color space.

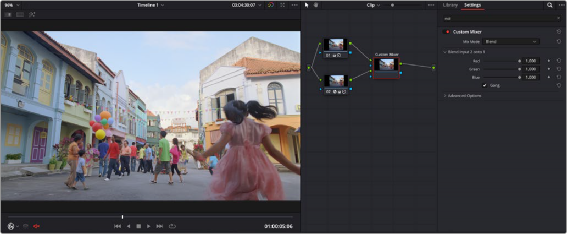

The initial setup of the Custom Mixer, Node 1 is the original image, Node 2 is identical but with a Noise Reduction effect applied to it.

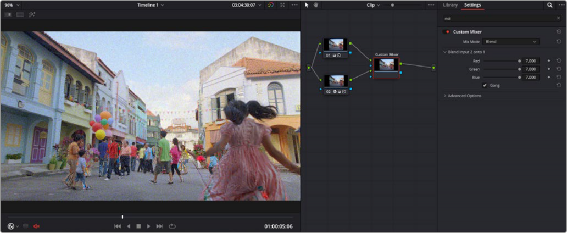

The final setup of the Custom Mixer, by extending the blend factor by 7, the mixer actually adds noise to the image instead.
