Allows the target loudness level in LUFS for the master Loudness meters to be set to your desired output target level. For example, DaVinci Resolve’s default loudness standard target is -23 LUFS, but the YouTube target LUFS specification is -14 LUFS. If -14 LUFS is set, the “0” mark on the loudness meter scale moves to this level, allowing you to focus your master mix levels towards that loudness standard.
Viewer

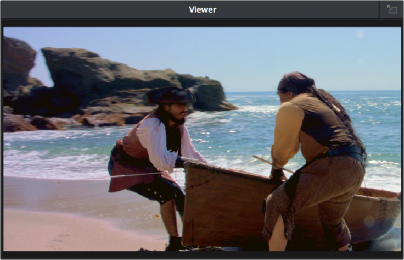

A small viewer to the right of the Monitoring panel shows the frame of video at the position of the playhead. This is the same image that’s output to the external broadcast display of your workstation if you have one connected.
The Viewer lets you see the picture you’re mixing to.

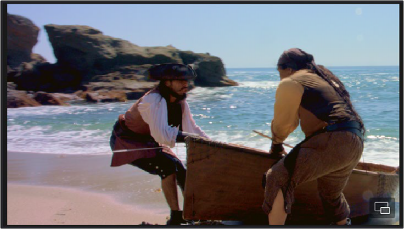

Clicking the Expand Viewer button at the bottom right-hand corner lets you open the Viewer into a floating window, which you can then position anywhere you want.
To close the floating Viewer, click the Dock Viewer button at the upper right-hand corner of the floating viewer window.
Click the button at the upper right-hand corner to dock the Viewer again.
