— Use Separate Color Space and Gamma: If this checkbox is turned off (the default), the Color Management panel of the Project Settings exposes one drop-down each for the Input, Timeline, and Output Color Space settings, and each setting simultaneously transforms the gamut and gamma, depending on which option you choose. If you turn this checkbox on, then the Color Management panel changes so that the Input, Timeline, and Output Color Space settings each display two pop-ups. The first drop-down lets you explicitly set the gamut, while the second drop- down lets you explicitly set the gamma.
To provide more detailed information, the simple and advanced global controls available for Resolve Color Management (RCM) are covered in a dedicated chapter.
For more information, see Chapter 9, “Data Levels, Color Management, and ACES.”
Dolby Vision™
DaVinci Resolve includes a GPU-accelerated software version of the Dolby Vision CMU (Content Mapping Unit) for doing Dolby Vision grading and finishing workflows right in either the free version of DaVinci Resolve or in DaVinci Resolve Studio. This is enabled and set up in the Color Management panel of the Project Settings with the Enable Dolby Vision checkbox.
s
s
s

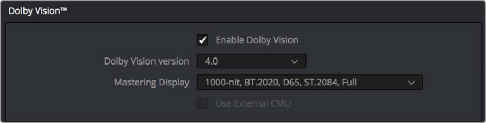

Dolby Vision settings in the Color Management panel of the Project Settings
There are five controls available:
— Enable Dolby Vision: Turns Dolby Vision on and off. When on, this checkbox enables the Dolby Vision palette in the Color page.
— Dolby Vision version drop-down: Lets you choose which version of the Dolby Vision algorithms to use. Options at the time of this writing include 2.9 and 4.0.
— Master Display drop-down: Lets you choose the nit level and gamut of the master HDR display you’re grading on.
NOTE: Dolby Vision controls are available to all DaVinci Resolve users for monitoring and automatically generating Dolby Vision metadata for creating other HDR and SDR deliverables from the HDR grade you’ve made. However, if you want to be able to make manual trims on top of this automatic analysis, you must email dolbyvisionmastering@ dolby.com for more information on obtaining a license.
NOTE: Dolby Vision controls are available to all DaVinci Resolve users for monitoring and automatically generating Dolby Vision metadata for creating other HDR and SDR deliverables from the HDR grade you’ve made. However, if you want to be able to make manual trims on top of this automatic analysis, you must email dolbyvisionmastering@ dolby.com for more information on obtaining a license.
NOTE: Dolby Vision controls are available to all DaVinci Resolve users for monitoring and automatically generating Dolby Vision metadata for creating other HDR and SDR deliverables from the HDR grade you’ve made. However, if you want to be able to make manual trims on top of this automatic analysis, you must email dolbyvisionmastering@ dolby.com for more information on obtaining a license.
— Use External CMU: A checkbox lets you choose whether to use the built-in software CMU or a hardware CMU that you have connected to your DaVinci Resolve workstation.
