The Keyframe Stretcher node
Keyframe Stretcher Node Introduction
TIP: The Keyframe Stretcher can be used on a single parameter by applying the Keystretcher modifier.
TIP: The Keyframe Stretcher can be used on a single parameter by applying the Keystretcher modifier.
TIP: The Keyframe Stretcher can be used on a single parameter by applying the Keystretcher modifier.
The Keyframe Stretcher node is inserted after animated nodes, so the keyframes stretch and the comp’s duration is modified. It is used to scale the keyframes on the animation curve to the current duration of the clip. This is particularly useful when creating title templates in Fusion for use in DaVinci Resolve’s Edit or Cut page.
Inputs
The single input on the Keyframe Stretcher node is used to connect a 2D image that contains keyframe animation.
— Input: The orange input is used for any node with keyframed animation. The input can be a Merge node that is not animated but contains foreground and background nodes that are animated.
Basic Node Setup
The Keyframe Stretcher is added just before the Media Out or Saver node. All nodes that include animation before the Keyframe Stretcher are modified if the comp changes duration.

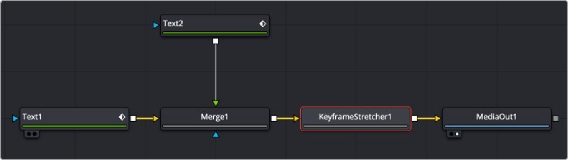

A Keyframe Stretcher changing the animation of two text nodes.
The diagram below shows the original 50-frame animation added to a parameter. The Keyframe Stretcher Start and End would be set to 0 and 50. The second keyframe is set at frame 10, and the third keyframe is set at frame 40. Setting the Stretch Start to frame 11 and the Stretch End to frame 39 will keep the existing keyframes at the same speed (number of frames.) The middle will be stretched.

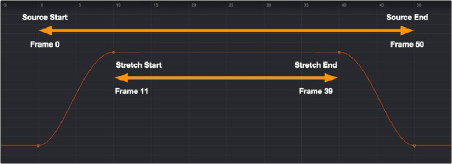

Original 50-frame animation
NOTE: The actual Spline Editor will show only the original keyframe positions. The splines are not changed by the Keyframe Stretcher; only the animation is changed.
NOTE: The actual Spline Editor will show only the original keyframe positions. The splines are not changed by the Keyframe Stretcher; only the animation is changed.
NOTE: The actual Spline Editor will show only the original keyframe positions. The splines are not changed by the Keyframe Stretcher; only the animation is changed.
In the below example, the duration of the clip is extended to 75 frames. The first 10 frames and the last 10 frames of the animation run at the same speed as the original animation, while any animation in the middle is stretched to fill the difference.

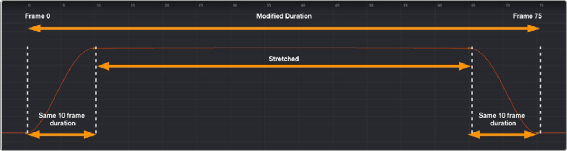

Animation modified to 75 frames but stretching only the middle of the animation
Inspector
The Keyframe Stretcher Keyframes tab
