Showing Marker Overlays and Annotations
The Color page Viewer supports viewing Marker Overlays and Annotations for Timeline and Clip markers. From the Viewer’s 3-dot option menu select Show Marker Overlays, or from the Viewer overlay controls drop-down (bottom left) select the annotation mode.

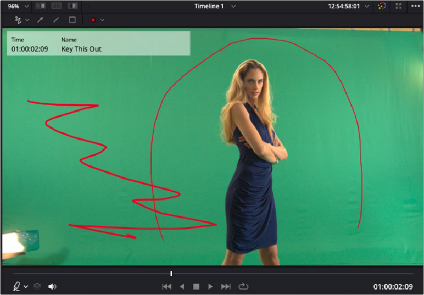

When Show Marker Overlays is checked, the Color Viewer
will display any Marker Overlays (upper left) and annotations.
The Onscreen Control (OSC) Menu
The Onscreen Control drop-down menu lets you choose which onscreen controls you want to display and adjust in the Viewer. Some palettes automatically enable corresponding onscreen controls when you open them. For example, opening the Window palette displays the Power Window onscreen controls, and opening the Qualifier palette displays the Qualifier onscreen controls.
The onscreen control menu for the Viewer
