Above the three trackballs are three buttons for resetting the grade:
— RGB: This key only resets the RGB balance to default detent.
— All: Select All to reset both RGB and level.
— Level: Select the Level key to reset the level while maintaining RGB differential.

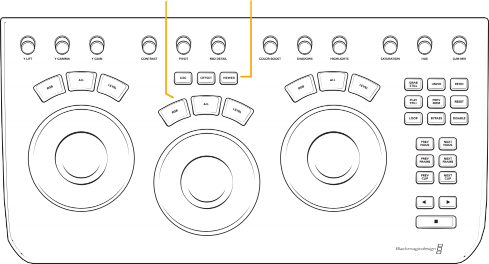

Reset Buttons Log, Offset, and Viewer Buttons

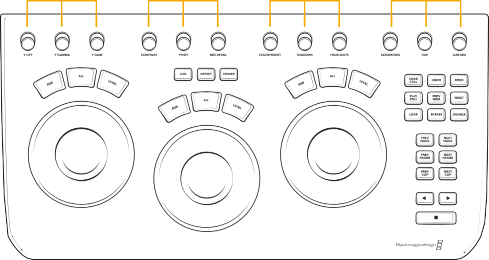

Control Knobs
The top of the panel features 12 high-resolution endless turn optical encoder control knobs with detent resets. These are spaced in groups of three for fast operation in dark suites. From left to right, the knobs control:
— Y Lift: This knob is for adjusting the contrast of the image in the darker areas. The midtone, and to a lesser amount the brighter areas of an image, will also change.
— Y Gamma: Use the gamma knob for primarily midtone contrast changes with some influence on the darker and brighter sections.
— Y Gain: The Y Gain control influences the brighter parts of the image at a greater extent to the mid and darker portions.
