Lets you add a simple drop shadow to any clip, using that clip’s native or generated alpha channel to create the shape of the shadow.
— Shadow Strength: Lets you choose how solid the drop shadow appears.
— Drop Angle: Lets you choose the angle the drop shadow appears at. At 0 the drop shadow is centered.
— Drop Distance: Offsets the drop shadow farther in the direction of the Drop Angle
— Blur: Softens the drop shadow.
— Color: Tints the drop shadow.
Edge Detect
An edge detection effect that isolates high-contrast boundaries with options for customizing which edges create outlines. With the edges isolated, this allows you to sharpen soft clips or to create a glow around a subject.

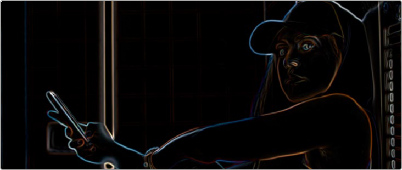

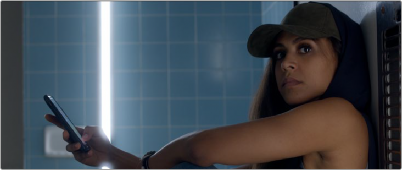

(Top) Original image, (Bottom) Image with default edge detect applied
Main
— Mode: Lets you choose between RGB and Grayscale edges. RGB is the default. RGB finds edges based on color and brightness, while Grayscale detects edges based solely on brightness changes.
— Edge color: (only enabled if Mode is set to Grayscale) Lets you colorize the edge outlines that are generated.
