‌Channel Control Buttons and Channel Control Knobs‌

Spanning the middle of the Channel Control panel, you’ll find 12 parallel groups of multi functional channel controls that align with the 12 faders on the Channel Fader panel. Within each of the 12 groups are four highly visible LED buttons and four touch-sensitive rotary knobs. If you touch knobs with Control held this will reset the value, and if you turn a knob with Shift held you will have fine control for the parameter.

1

1

1

2

2

2

3

3

3

Since the functions of these buttons and knobs change based on the channel display mode and selected channel and active parameters, these “soft” controls remain unlabeled, and are identified by the corresponding controls on an adjacent LCD monitor. Additionally, each channel control button is illuminated with bi-colored LEDs to make it easy to identify active buttons, parameters, and groups of controls at a glance.

CTL

PAN PATH

EQ

FILT

AUX AUX

COMP U1

LIM

U2

EXP

U3

ALT

CTL

PAN PATH

EQ

FILT

AUX AUX

COMP U1

LIM

U2

EXP

U3

ALT

CTL

PAN PATH

EQ

FILT

AUX AUX

COMP U1

LIM

U2

EXP

U3

ALT

CTL

PAN PATH

EQ

FILT

AUX AUX

COMP U1

LIM

U2

EXP

U3

ALT

CTL

PAN PATH

EQ

FILT

AUX AUX

COMP U1

LIM

U2

EXP

U3

ALT

CTL

PAN PATH

EQ

FILT

AUX AUX

COMP U1

LIM

U2

EXP

U3

ALT

CTL

PAN PATH

EQ

FILT

AUX AUX

COMP U1

LIM

U2

EXP

U3

ALT

CTL

PAN PATH

EQ

FILT

AUX AUX

COMP U1

LIM

U2

EXP

U3

ALT

CTL

PAN PATH

EQ

FILT

AUX AUX

COMP U1

LIM

U2

EXP

U3

ALT

1

1

1

The right-side In-Line Channel Display buttons with ALT + Pan/Path button pressed and corresponding ALT-Pan controls in the Channel Controls LCD

2

2

2

The right-side InLine Channel Display buttons with CTRL + Pan/Path button pressed and corresponding Path controls in the Channel Controls LCD

3

3

3

The right-side In-Line Channel Display buttons with ALT + CTRL

+ Pan/Path button pressed and corresponding ALT-Path controls in the Channel Controls LCD

In-line EQ display mode showing four red In/ Out toggle switches and four dial controls on each channel

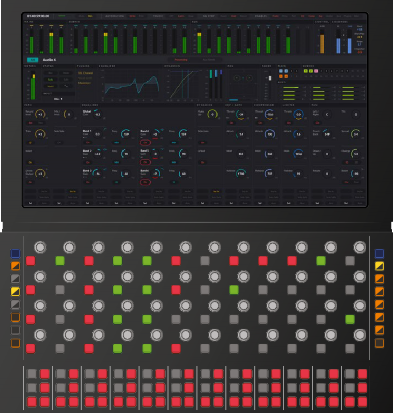

Channel Control buttons appear red or green when they are matched to a parameter on the Channel LCD monitor, and can be used as either toggles, On/Off, or In/Out switches for the adjacent parameter on-screen. Similar parameters will all have the same colored buttons while the Channel Controls are set to In-Line mode. However, in Channel or Master display mode, you’ll see alternating rows or groups of red or green buttons to separate the different parameter groups as shown on the Channel display.

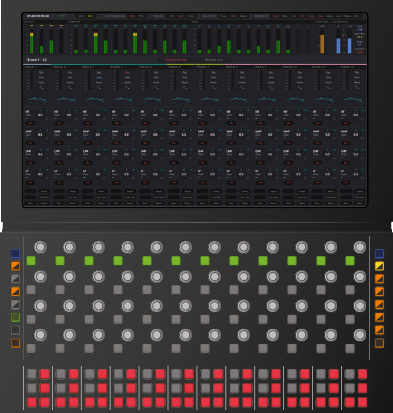

In-line Pan display mode showing one green In/Out toggle switch and four dial controls for each channel
