— Trim from Unity (0): Press User 2 to toggle Trim from Unity on/off. In automation Trim mode, when Trim from Unity is on, pressing the SEL key on any channel will re-locate the fader to the unity (0) position and stop playing back existing moves.
— Spill: Left/Spill: Right: Fader Spill temporarily spills the member tracks of a master bus or VCA group to nearby faders and is a fast way to finesse member track levels while mixing. The User 3 button determines the direction in which member tracks are temporarily mapped to the adjoining faders on the Fairlight Desktop Console. Press User 3 to toggle between Spill: Left and Spill: Right, which in turn dictates whether the member tracks of a bus are assigned to neighboring faders to the left or right of a bus when Spill is engaged in the Channel Fader panel.
— Spill: Tracks/Spill: Any: Press User 4 to toggle between Spill: Tracks/Spill: Any. When in the default (unselected) state, the Spill: Any option allows member tracks of a bus to be spilled to the nearest faders to the left or right, including faders assigned to Master buses and VCA groups. When toggled to the Spill: Tracks option, member tracks of a bus spill either left or right, starting with the nearest track fader in the designated direction. This option is useful if
NOTE: At the time of this documentation, the blank User Set and subsequent blank button options are not yet functional. Stay tuned for future updates.
NOTE: At the time of this documentation, the blank User Set and subsequent blank button options are not yet functional. Stay tuned for future updates.
NOTE: At the time of this documentation, the blank User Set and subsequent blank button options are not yet functional. Stay tuned for future updates.
you need to maintain fader control of your buses while you spill their constituent tracks to the nearest track faders.
Fairlight Desktop Console Configurations
There are three ways that you can configure the Fairlight Desktop Console with your DaVinci Resolve workstation:
As a standalone mixing controller, simply connect the Fairlight Desktop Console to your
DaVinci Resolve computer for professional control of the Edit page Mixer as well as the Fairlight page recording, mixing, and automation workflows.

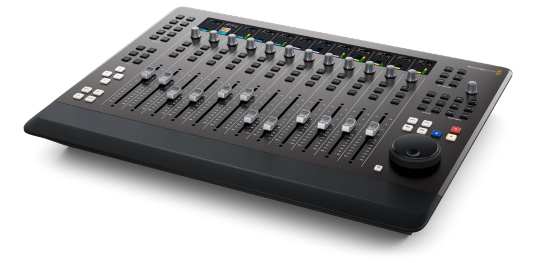

Fairlight Desktop Console
Add a second monitor via HDMI for enhanced visual feedback of the mixing parameters while you work with the console. This configuration gives you realtime graphical updates on the screen, similar to the Channel Control LCD in the full-sized modular Fairlight consoles.

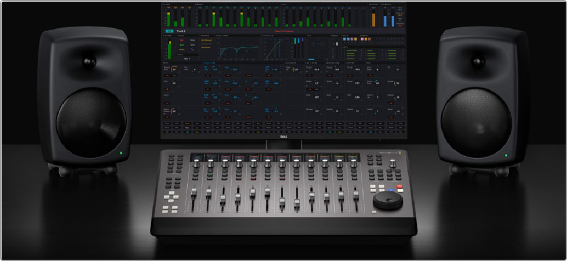

Fairlight Desktop Console connected to a second monitor via HDMI for enhanced visual feedback

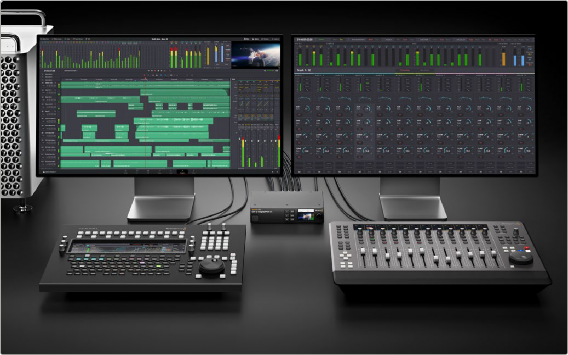

Fairlight Desktop Console connected to a second monitor via HDMI with nearby computer screen to display the DaVinci Resolve interface and enhanced channel- based visual feedback from the console on the HDMI screen
Connect to a Desktop Fairlight Audio Editor and DaVinci Resolve computer for control of nearly every function on the Fairlight Page interface. This expanded desktop configuration is similar to a 2-bay Fairlight modular console at about half the price.
